A hybrid of fast, accessible, ‘hands on’ control working in conjunction with the intuitive touch screen.
This responsive, wide screen, touch interface provides a constantly evolving software skin which envelopes the high performance hardware platform.

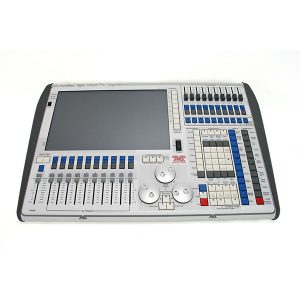

Avolites Tiger Touch, the seamless link between functionality and form.
Specification:
Switches & Faders
• Encoders – Avolites utilises Bournes™ ultra smooth, metal shaft optical encoders, the industry’s best!
• Encoder wheels – Anodised, non-abrasive, aluminium encoder wheels. Slick Low Friction, High Mass design offering sensitive control, with outer belt for fine-tuning.
• Engraved buttons – Console detail and function at your fingertips!
• Faders – Custom made, high quality carbon track linear faders. Durable , smooth operation with integral dust cover to protect and prolong their life.
• Shadow™ Switches – The Industry’s Best! Indestructible, Rock Proof, gold contact switches are graded for pressure consistency.
• 10 Macro Buttons – User programmable with any programmable sequence.
• 20 Submasters – Capable of controlling cues, cue lists and chases.
Outputs & Connections
• Ethernet output – Artnet protocol fully supported and enabling 12 full speed DMX Universes.
• 4 x DMX Output Ports – Full speed, individually opto-isolated and floating Outputs giving 2,048 DMX Channels. Separate DMX Processors for full speed, 44Hz DMX. Avolites enables customising of DMX parameters including Break Length, Mark after Break and Interbyte Timing giving smooth, consistent control of even the trickiest fixtures!
• Video support – Media Server Support utilizing Avolites Active Fixtures in conjunction with the new, cross platform, Media Server protocol “CITP” where “Clips” and Live Previews are presented graphically on the console screen.
• MIDI – The console offers MIDI Time Code Control. Sequences can be synchronised to Timecode for perfect cueing. Playback buttons or faders can also be remotely activated by MIDI.
• Audio Input – Analogue stero line-level input via 2.5 mm mini jack. Use Bass, Mid or Treble to sound-to-light trigger any or all of the consoles playbacks.
Displays:
• Console monitor – The external VGA screen mounts to the console. The heavy duty, adjustable VESA Mount Bracket is available from Avolites.
• Touch Screen Responsive – wide screen touch interface. Utilising Mobile Computing Grade 15.4 inch, High Contrast, Bright LCD Display coupled with Ultra-accurate, 5 wire technology resistive Touch Sensor.
Processing & Memory:
• CPU – Intel Core Duo™
• Networking – Intel 82537L Gigabit Ethernet.
• Graphics – The new Intel® Graphics Media Accelerator (GMA) 950 provides incredible visual quality, versatile display options.
• Rear I/O ports – PS/2 Keyboard/Mouse, LPT, VGA, LAN, USB2.0, Audio, SPDIF, IEEE 1394.
• Operation Temperature 0 ~ 60°C (32 ~ 140°F).
• Rear I/O ports – PS/2 Keyboard/Mouse , LPT, VGA, LAN, USB2.0, Audio, SPDIF, IEEE 1394.
• Operation Temperature 0 ~ 60°C (32 ~ 140°F).
• RAM – Hit the Beat! 1 Gigabyte of DDR2 RAM enables the entire console operation to be executed in RAM providing the fastest operation.
• Fast response – The console response speed averages at a lighting quick sub 100ms from hitting the flash button to changing the output.
Storage:
• Data stick – Save your show and User Profiles on the conveniently front mounted USB2 stick.
• Internal Hard Disk – mobile computing grade hard disc mounted on shock absorbant frame has the capacity to store up to 50,000 shows.
Software:
• TITAN Operating System – the TITAN OS takes full advantage of multithreading capabilities of the Intel Core Duo™ processors.
• Stage Visualizer – The built in stage visualizer is automatically configured and ready to use as soon as your console is patched
Electrical & Operating Requirements:
• Current – Maximum of 3 Amps.
• PSU – Connect to worldwide mains supplies with the Auto-ranging power supply 90V – 240 VaC, Auto tracking 50 to 60 hz.
• Max Ambient Temperature – 50 °C
• Relative Humidity – 5% to 95% noncondensing.
- Tiger Touch in Flighcase : 30kg
- 750 x 610 x 300 mm
